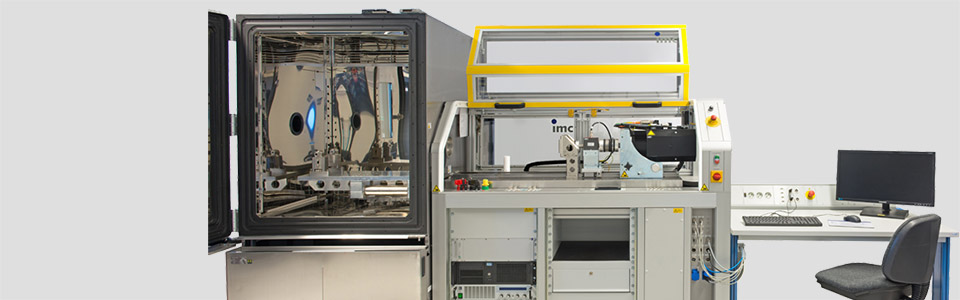

R&D Test Stand for Electric Power Steering

Electric power steering under inspection

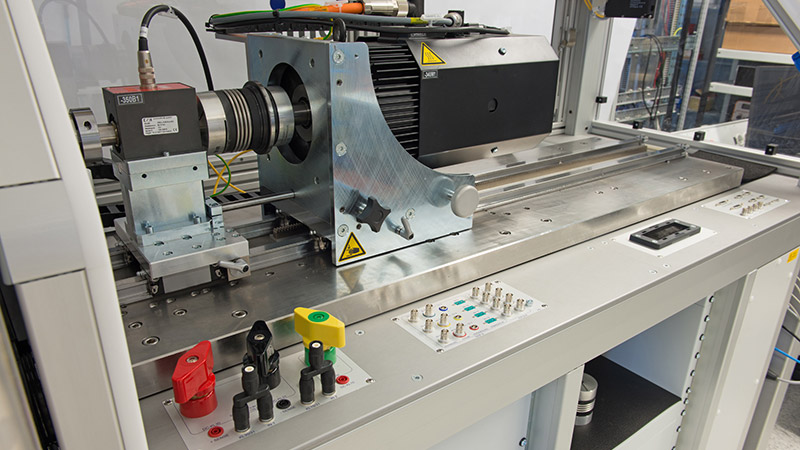

R&D test stand for steering motors

Testing steering motors

Test object power supply: up to 80V DC, 170A DC
Electronic load: 2kW
Load machine: up to 5,000U/min
Torque measuring: Two-range measurement shaft 50/5Nm
Provision of steering motion and steering force

Integrated imc measurement devices

24-channel imc CRONOScompact: the real-time measurement and open- & closed-loop control system is equipped with an ICPU2-8 amplifier for sound and vibration testing, two ISOF-8 amplifiers for fast, isolated measuring of voltage, current or temperature and an HRENC amplifier for incremental encoder or pulse signals. In addition to Ethernet, the imc CRONOScompact provides interfaces via CAN and FlexRay.

imc Software

Visualization, recording, analysis and archiving of data are based on the test and measurement software imc STUDIO Developer
imc FAMOS Pro applied for extensive data analysis
