imc SPARTAN-2 (4 Slots)
compact and robust housing with 4 slots for up to 32 analog inputs
Measurements (WxHxD in mm):
250 x 155 x 246
Without handles, feet
Weight: 9kg
imc SPARTAN-4 (8 Slots)
compact and robust housing with 8 slots for up to 64 analog inputs
Measurements (WxHxD in mm):
332 x 155 x 246
Without handles, feet
Weight: 10kg
imc SPARTAN-6 (12 Slots)
compact and robust housing with 12 slots for up to 96 analog inputs
Measurements (WxHxD in mm):
413 x 155 x 246
Without handles, feet
Weight: 11kg

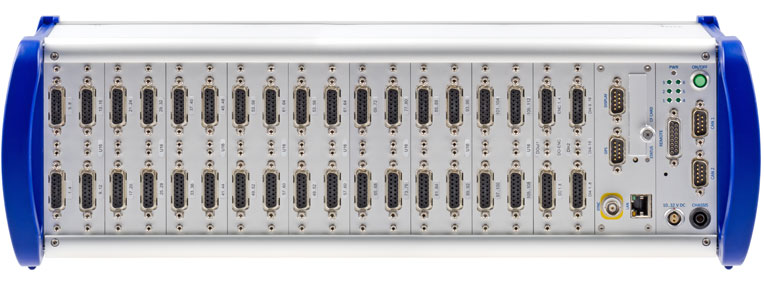

imc SPARTAN-8 (16 Slots)
compact and robust housing with 16 slots for up to 128 analog inputs
Measurements (WxHxD in mm):
494 x 155 x 246
Without handles, feet
Weight: 12kg
imc SPARTAN-R (16 Slots)
19" rack version housing (3HE/84TE) with 16 slots for up to 128 analog inputs
Measurements (WxHxD in mm):
426,7 x 133,35 x310
Without handles, feet
Weight: 8kg
Configuration
SPARTAN -2 / 4 / 6 / 8 | SPARTAN-R | |
---|---|---|
General | ||
Aggregate sampling rate | 400 kSps | |
max. channel sampling rate | 500 Sps / chan | |
Housing type | portable | 19" rack |
max. number of channels configurable | 32/64/96/128 | 128 |
configurable module slots (1 slot = 4 HP) | 4/8/12/16 | 16 |
Operating conditions | ||
Operating temp. range | ||
Extended temp. range (incl. condensation) | ||
Shock vibration rating | 30g pk (3 ms) | |
Connectivity | ||
Ethernet | 100 MBit | |
W-LAN (WiFi) | ||
Wireless GSM | ||
GPS connection port | ||
Display connection port | ||
Remote controlled main switch | ||
Programmable status feedback (LEDs) | ||
Data Storage | ||
CF card slot (Compact Flash) | ||
storage on PC / network drive | ||
IDE hard drive (internal) | ||
Stand Alone Capabilities | ||
PC independent complex trigger functionality | ||
onboard real-time data analysis (imc Online FAMOS) | ||
Autarkic PC-less operation, self start (timer, absolute time) | ||
Synchronization & Clock | ||
Master-Slave between different imc systems | ||
NTP network based synchronization | ||
via external GPS signal | ||
via IRIG-B & DCF-77 signal | ||
Pulse Counter and Process Control (Digital I/O) | ||
16 Bit digital in, 8 Bit digital out | ||
4 pulse counter (2 chan quadrature mode) | ||
Field Bus Extensions | ||
CAN | ||
CAN-FD | ||
LIN | ||
FlexRay | ||
J1587 | ||
XCPoE | ||
EtherCAT | ||
Modbus | ||
ARINC | ||
MVB-Bus Typ EMD | ||
MVB-Bus Typ ESD | ||
IPTCom | ||
Power Supply | ||
DC input 10V to 32V | ||
AC/DC adapter (110 to 230VAC) | ||
data integrity upon power fail | ||
UPS | ||
isolated power supply input | ||
Software | ||
imc REMOTE WebServer |
Key: | Default | Optional |
