imc CRONOScompact: Models
A complete and autonomous measurement system with a variety of possibilities for the integration of hard- and software solutions.
imc CRONOScompact is a "rack"-based series of devices, which can accommodate several conditioners as plug-in modules in a device frame. These "CRC plug-in modules" do not have either their own housing nor their own power supply. The available analog, digital and fieldbus modules can be combined freely.
Housing Sizes
imc CRONOScompact 400-RACK
Dimension (W x H x D) in mm: 426,7 x 133,35 x 310 Weight: typ. 9 kg / max. 12 kg
- Compact measurement system in a 19 inch rack (3HE/84TE)
- 17 free slots to configure with modules1
- 400 kHz sampling rate
imc CRONOScompact 400-08
Dimension (W x H x D) in mm: 291 x 155 x 264, Weight: ca. 9 kg
- Compact and robust portable housing
- 8 free slots to configure with modules
- 400 kHz sampling rate
imc CRONOScompact 400-11
Dimension (W x H x D) in mm: 352 x 155 x 264, Weight: ca. 10.5 kg
- Compact and robust portable housing
- 11 free slots to configure with modules
- 400 kHz sampling rate
imc CRONOScompact 400-13
Dimension (W x H x D) in mm: 393 x 155 x 264, Weight: ca. 12.5 kg
- Compact and robust portable housing
- 13 free slots to configure with modules
- 400 kHz sampling rate

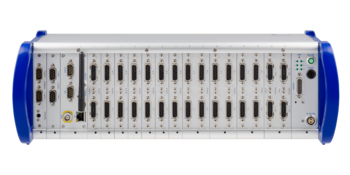

imc CRONOScompact 400-17
Dimension (W x H x D) in mm: 474 x 155 x 264, Weight: ca. 14.5 kg
- Compact and robust portable housing
- 17 free slots to configure with modules1
- 400 kHz sampling rate
(1) The module slots can be occupied with analog and digital modules. The number of used analog respectively digital modules may not exceed 16.
Overview of Tech Data
| General | CRC-400 | CRC-400GP |
|---|---|---|
| Housing type | portable or 19" rack | portable or 19" rack |
| Extension module slots | 8/11/13/17 [16] | 8/11/13/17 [16] |
| Aggregate sampling rate (via extension slots) | 400 kSps | 400 kSps |
| External imc CRONOSflex Modules (CRFX) | ||
| Interface for external imc CRONOSflex-Modules |  | |
| Aggregate sampling rate (via external CRFX modules) | 2000 kSps | |
| Connectivity | ||
| Ethernet | 100 MBit | 1 GBit |
| internal W-LAN (WiFi) 2,4 GHz (Draft-g, 54 Mbit/s) | ||
| internal W-LAN (WiFi) dual antenna (Draft-n, 300 Mbit/s) | ||
| ext. Wireless UMTS, 3G, 4G | ||
| GPS connection port | ||
| Display connection port | ||
| Remote controlled main switch | ||
| Programmable status feedback (LEDs) | ||
| Isolated SYNC signal | ||
| Data Storage | ||
| CF card slot (Compact Flash) | ||
| CFast card slot | ||
| USB 2.0 host port (external removable storage) | ||
| storage on PC / network drive | ||
| IDE hard drive (internal) | ||
| Stand Alone Capabilities | ||
| PC independent complex trigger functionality | ||
| onboard real-time data analysis (imc Online FAMOS) | ||
| Autarkic PC-less operation, self start (timer, absolute time) | ||
| Web-Server / Web-Designer | ||
| Multimonitoring | ||
| Synchronization & Clock | ||
| Master-Slave between different imc systems | ||
| NTP network based synchronization | ||
| PTP precision network synchronization | ||
| via external GPS signal | ||
| via external IRIG-B & DCF-77 signal | ||
| Field Bus Extensions | ||
| CAN | ||
| LIN | ||
| FlexRay | ||
| XCPoE | ||
| EtherCAT Slave | ||
| Profinet | ||
| Modbus | ||
| ARINC | ||
| MVB (EMD or ESD) | ||
| Kistler RoaDyn | ||
| Operating conditions | ||
| Operating temp. range | -20 to +65°C | -20 to +65°C |
| Extended temp. range (-40 .. +85 C, incl. condensation) | ||
| Shock vibration rating | MIL 810F (40g), IEC 60068-2-27, IEC61373 cat1, class A, B | |
| Power Supply | ||
| DC input 10 V to 50 V | ||
| isolated power supply input | ||
| AC/DC adapter (110 to 230 VAC) | ||
| data integrity upon power fail | ||
| UPS (lead gel battery) | ||
| UPS (extended range Li-Ion) | ||
